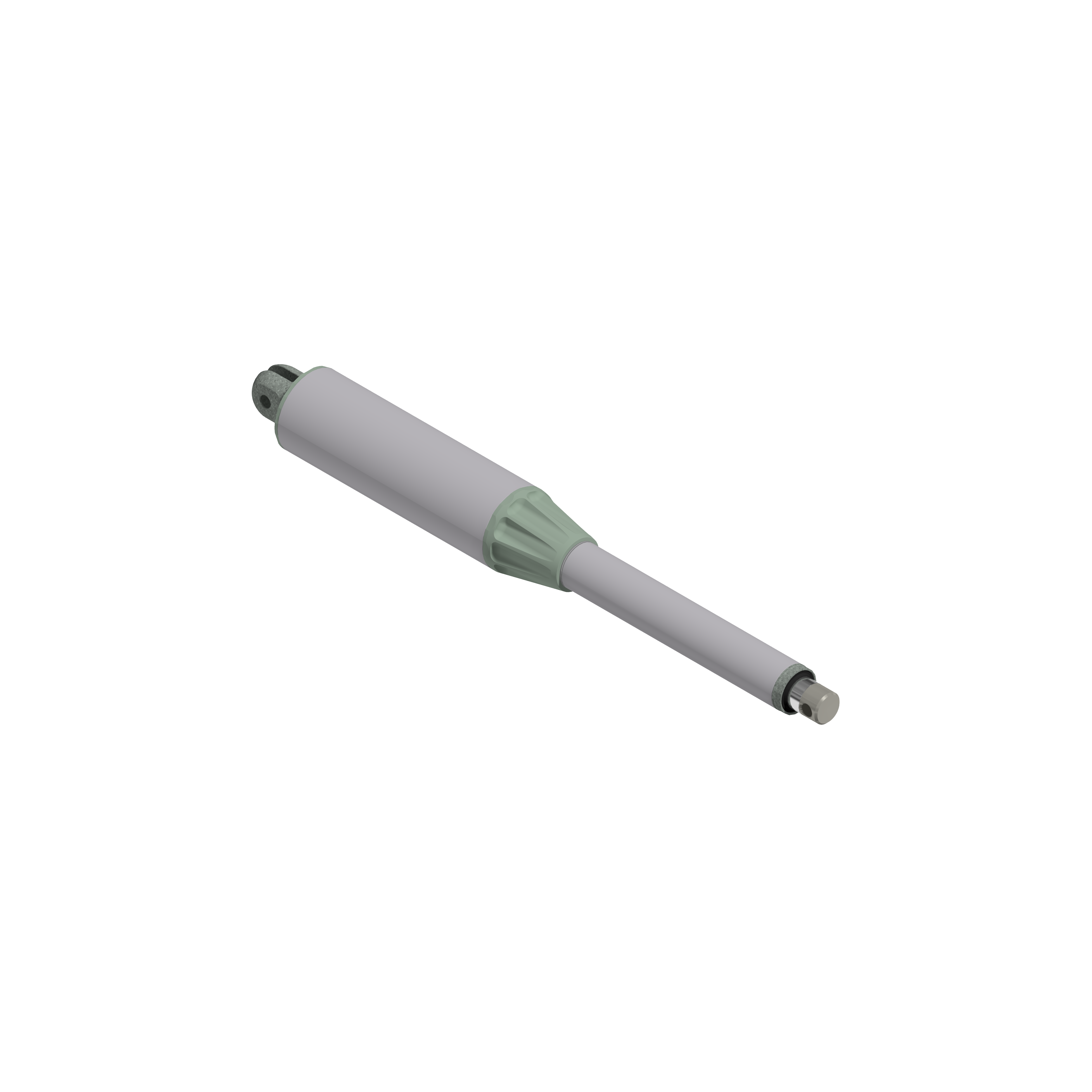

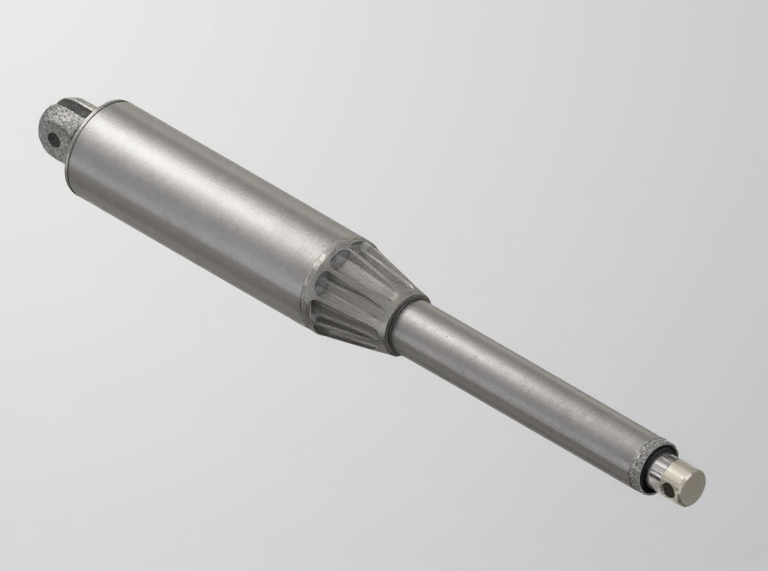

Linear Actuator L03 DC

L03 CC

Linear Actuator L03 DC

* Permanent magnet motor
* Planetary gearbox
* Acme lead screw or ballscrew (VRS)
* Chrome plated steel push rod
* Permanent grease lubrication
* IP 65, tested according to rule CEI EN 60529
* Working temperature range -10°C +60°C
* Intermittent duty S3 30% (5 min) a 30°C*
* Encoder and/or limit switches on request

(*) For any special duty please contact our technical dept.

Don't Forget

Right click on the file and select "Save as".
L03
L03-FCE
L03-FCM
L03-VRS
L03-Front ends
L03-Antirotation
L03-VRS-FCE

Please fill the form you can find below to configure your product and contact our staff.
Click here!

Tech Values

Max force: 5.000 N

Max speed: 30 mm/s

Motor: 12 - 24 Vdc
