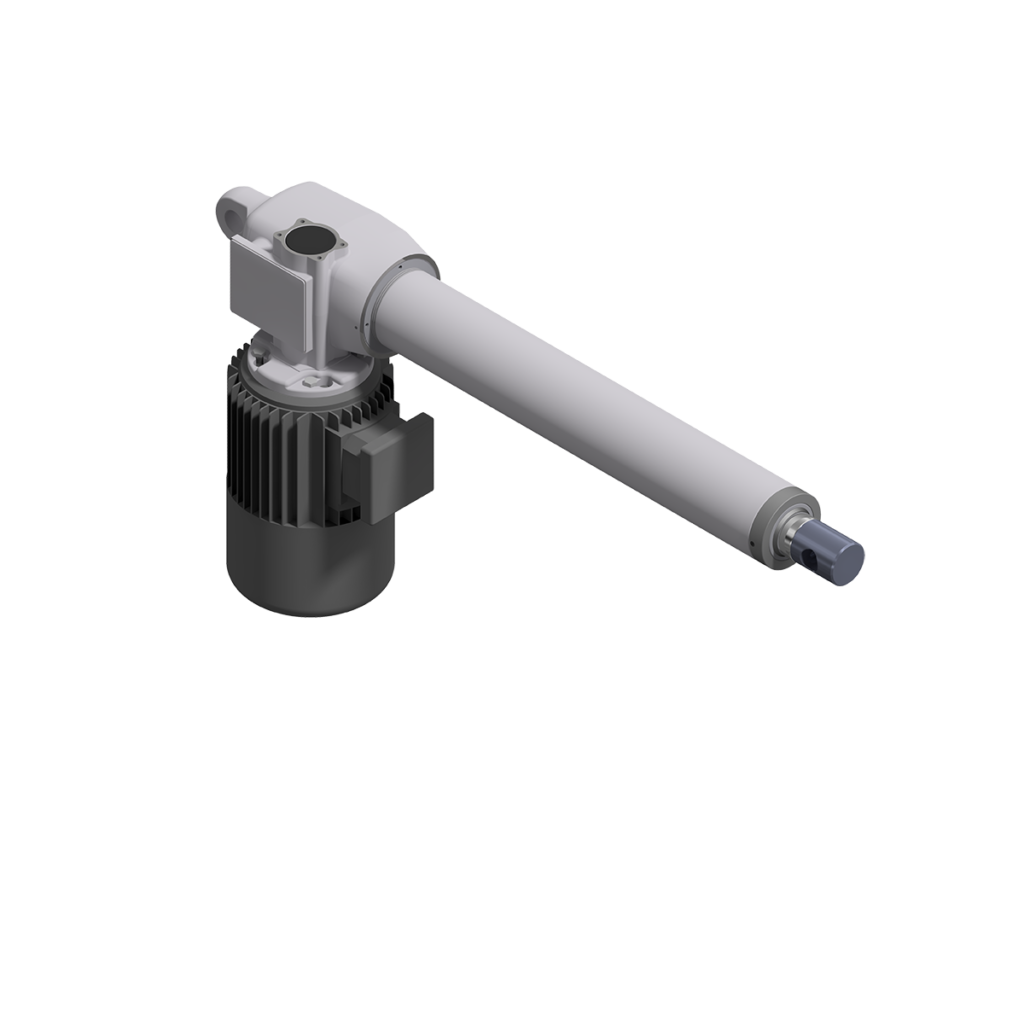

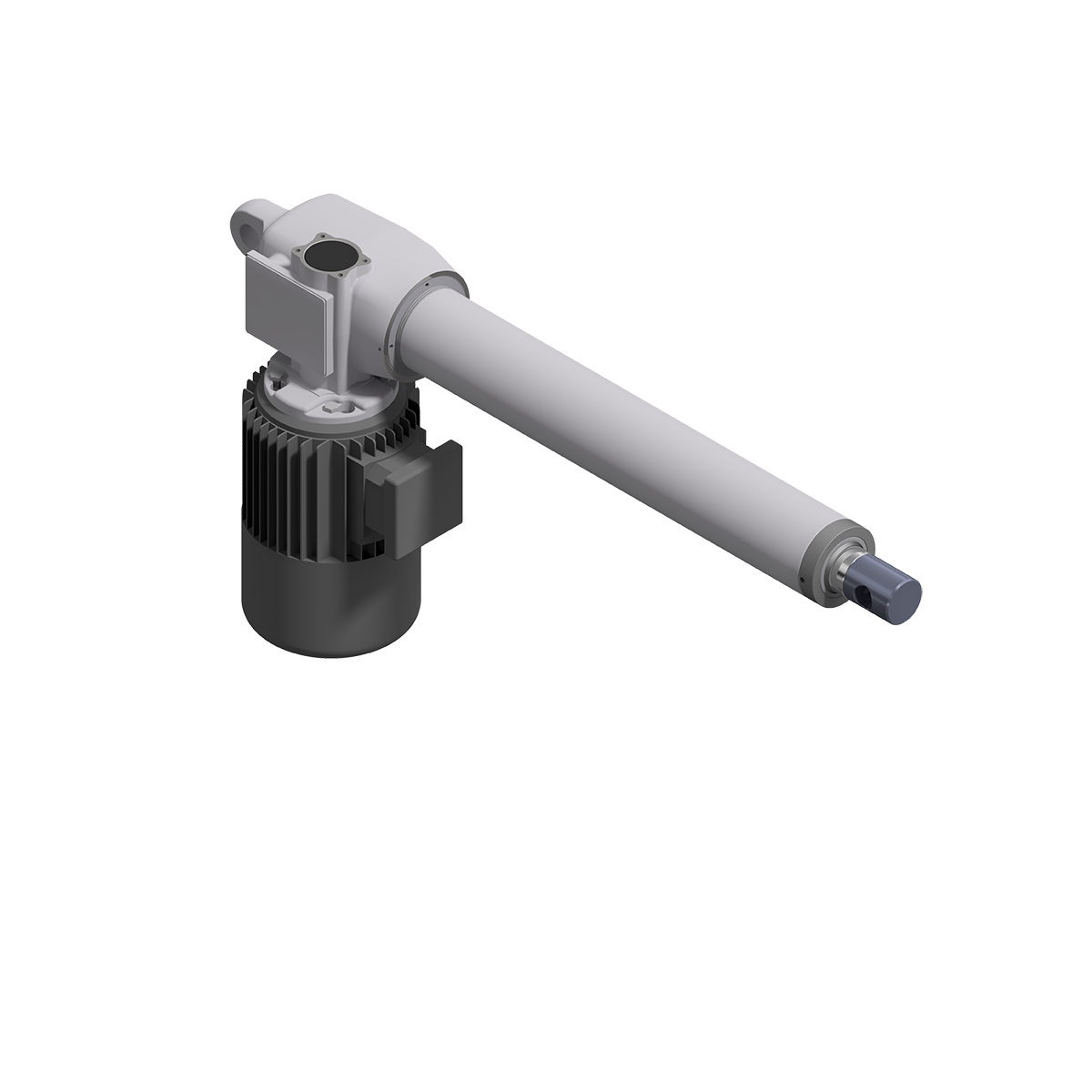

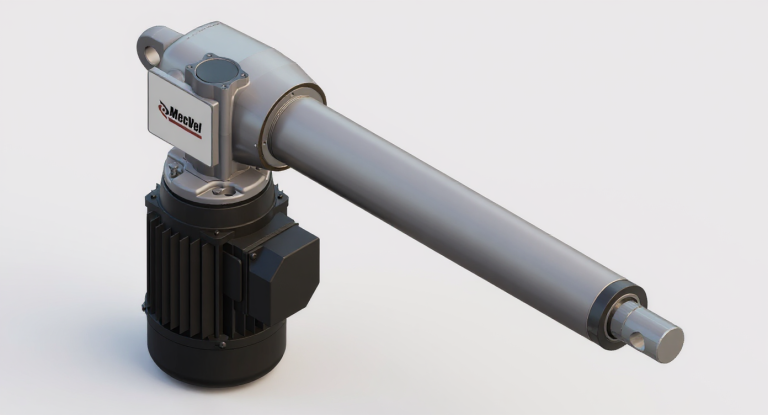

ALI5 linear actuator

  • AC motor single-phase or three-phase
  • Worm gearbox
  • Acme lead screw or ballscrew
  • Chrome plated steel push rod
  • Grease (standard) or oil (VRS continuous duty S1) lubricated on request
  • IP 65, tested according to rule CEI EN 60529 – NB: only for brake motors standard IP 54, IP 65 on request
  • Working temperature range -10° C +60 °C
  • Intermittent duty S3 30% (5 min) a 30° C (acme lead screw version)
  • Limit switches, potentiometer and encoder on request
  • ATEX II 3 D T4 version (AC motor) on request

Tech values

Max. load 18.000 N
Max. speed 93 mm/s
Motor 1ph-3ph Vac
