actuators ALI3 ACDC

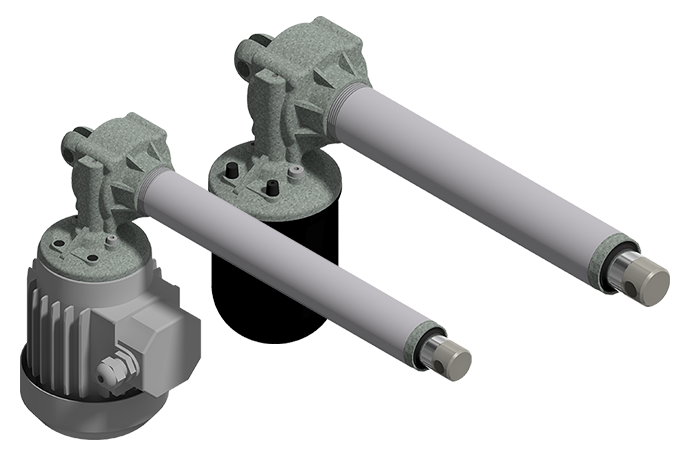

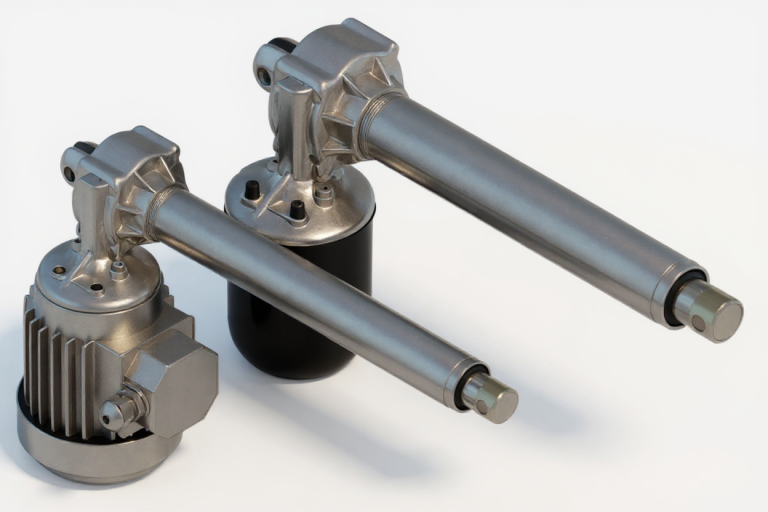

ALI3 linear actuator

  • Three phase or single phase motor
  • Worm gearbox
  • Acme lead screw or ballscrew
  • Chrome plated steel push rod
  • Permanent grease lubrication
  • IP 65, tested according to rule CEI EN 60529
  • Working temperature range -10° C +60 °C
  • Intermittent duty S3 30% (5 min) a 30° C
  • Limit switches, potentiometer and encoder on request

Tech values

Max. load 6.000 N

Max. speed 35 mm/s

Motor 12-24 Vdc-Vac
