attuatore lineare motore perpendicolare ALI2 AC

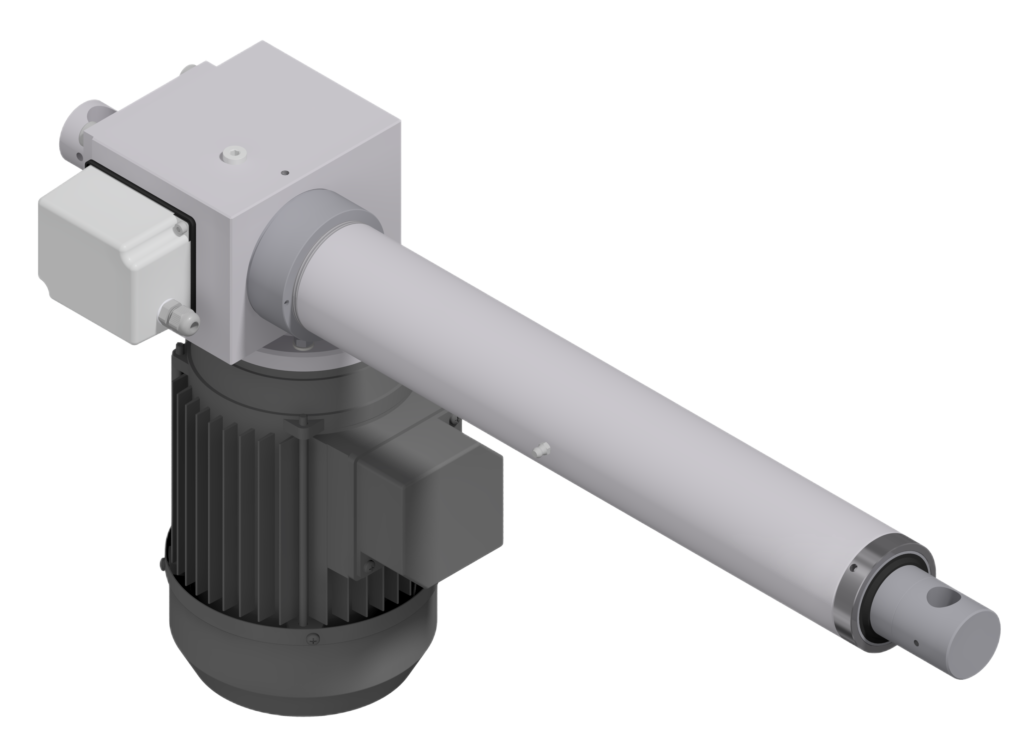

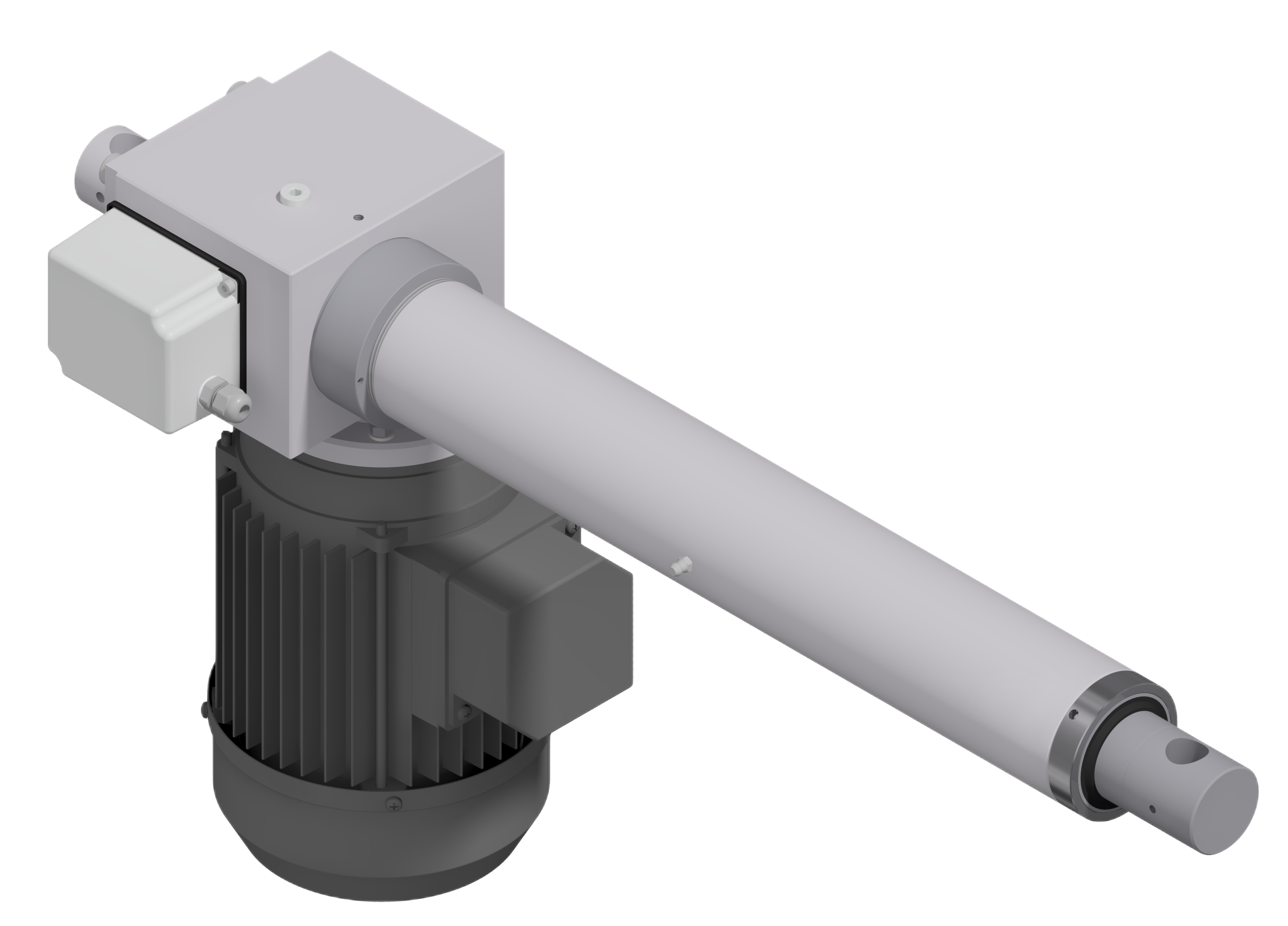

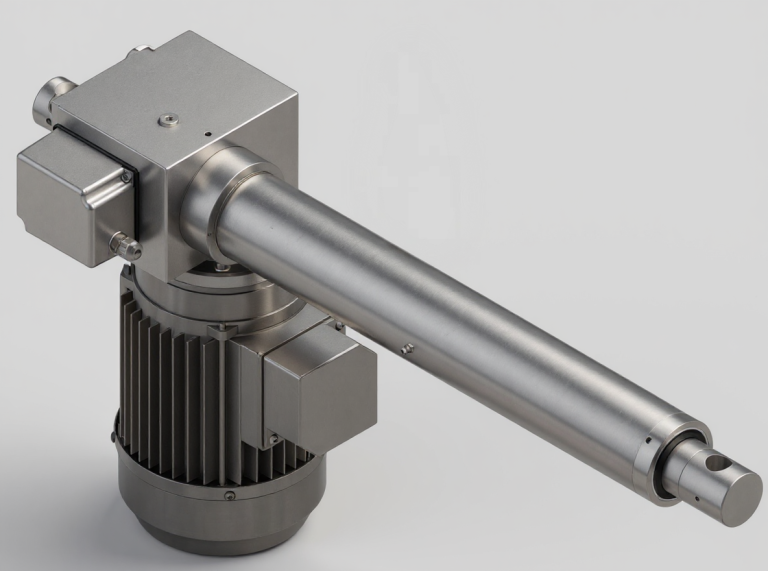

AV3 Linear actuator

• AC motor, flange B14
• Double worm gearbox
• Acme lead screw or ballscrew
• Chrome plated steel push rod
• Grease lubricated
• IP 65, tested according to rule CEI EN 60529 – NB: only for brake motors standard IP 54, IP 65 on request
• Working temperature range -10° C +60° C
• Intermittent duty S3 30% (5 min) a 30° C
• Limit switches, potentiometer and encoder on request

Tech values

Max. load 25.000 N

Max. speed 55 mm/s

Motor 1ph-3ph Vac
