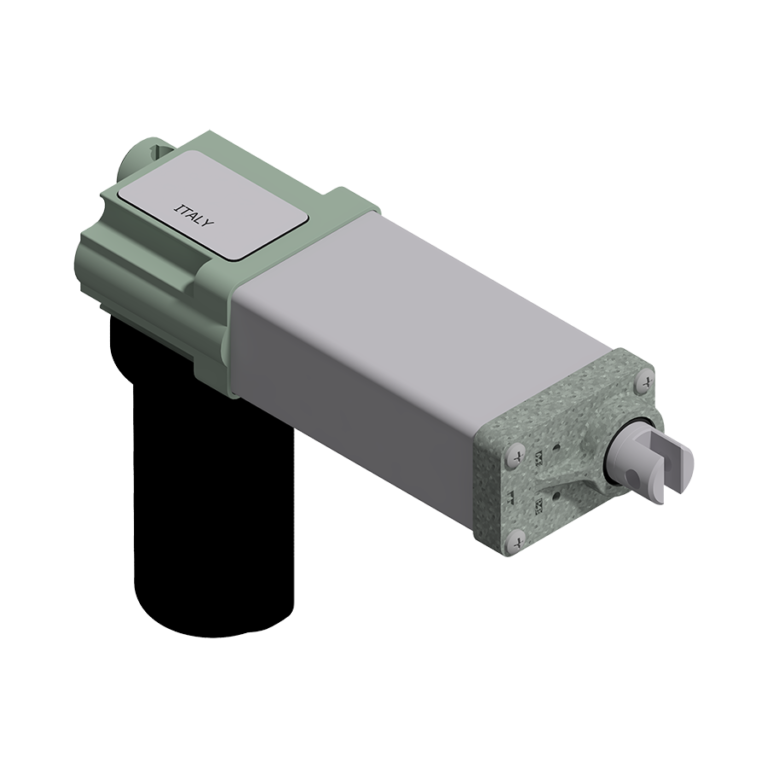

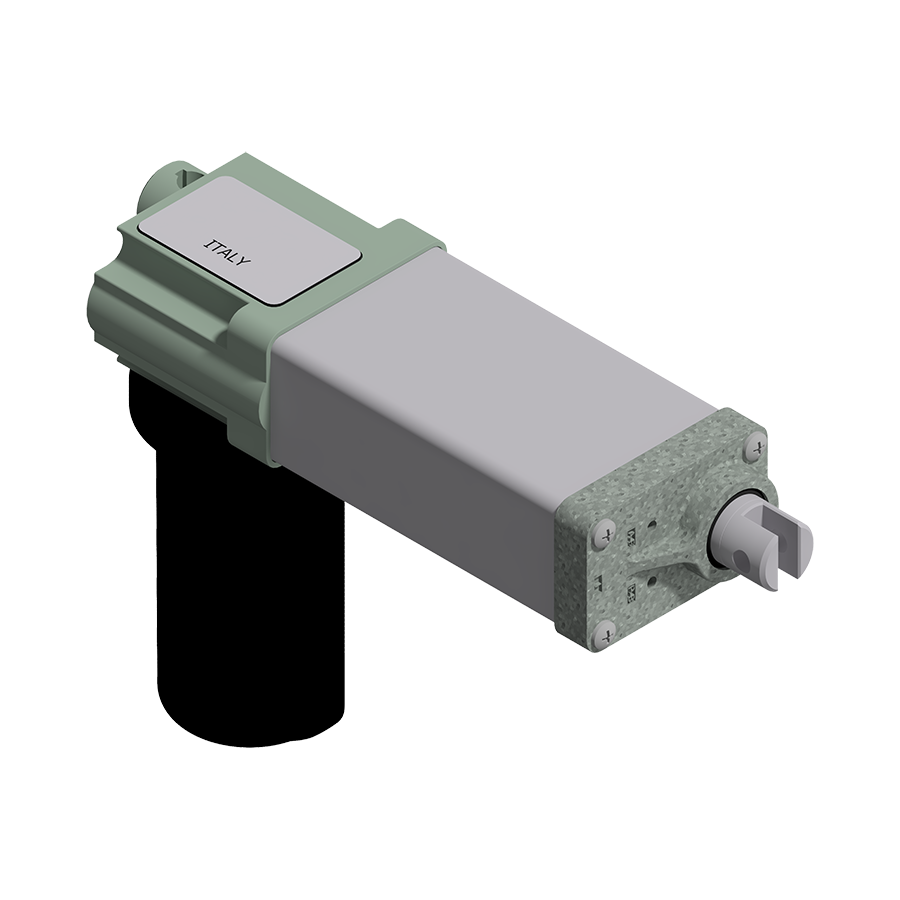

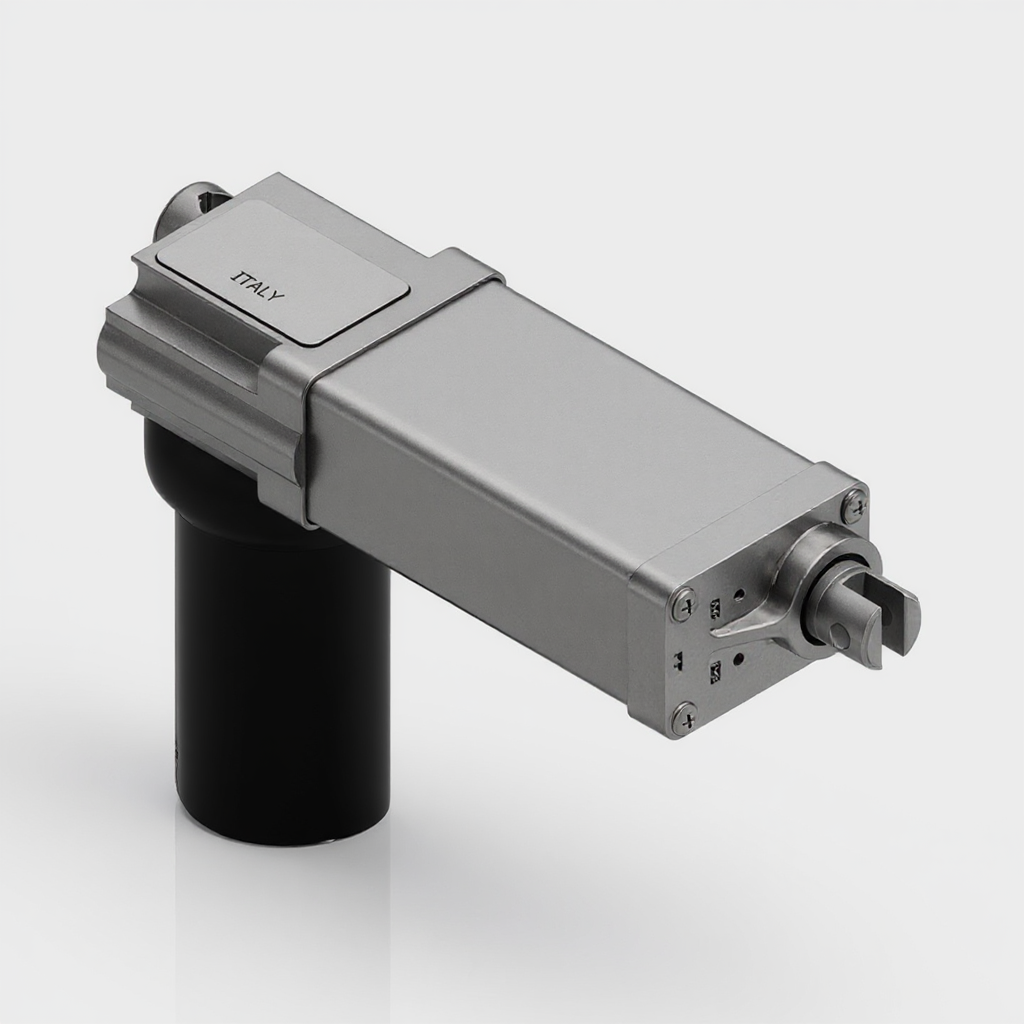

Linear Actuator ALI1 DC


Linear Actuator ALI1 DC

*  Permanent magnet motor 12 - 24 Vdc
*  Double worm gearbox
*  ACME lead screw
*  Aluminum push rod (Stainless steel on request)
*  Permanent grease lubrication
*  IP 65, tested according to rule CEI EN 60529
*  Working temperature range -10°C +60°C
*  Intermittent duty S3 30% (5 min) a 30°C*
*  Encoder and/or limit switches on request

(*) For any special duty please contact our technical dept.

Don't Forget

Right click on the file and select "Save as".
ALI1-Front ends
ALI1-Motor position
ALI1-MM Option

Please fill the form you can find below to configure your product and contact our staff.
Click here!

Tech Values

Max force: 1.200 N

Max speed: 90 mm/s

Motor: 12 - 24 Vdc
