electric linear actuators 90 degrees angle motor ALI4-P DC and AC

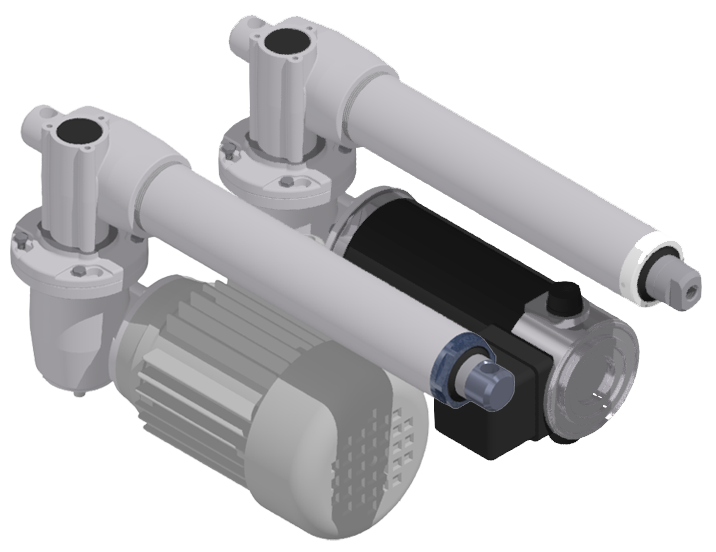

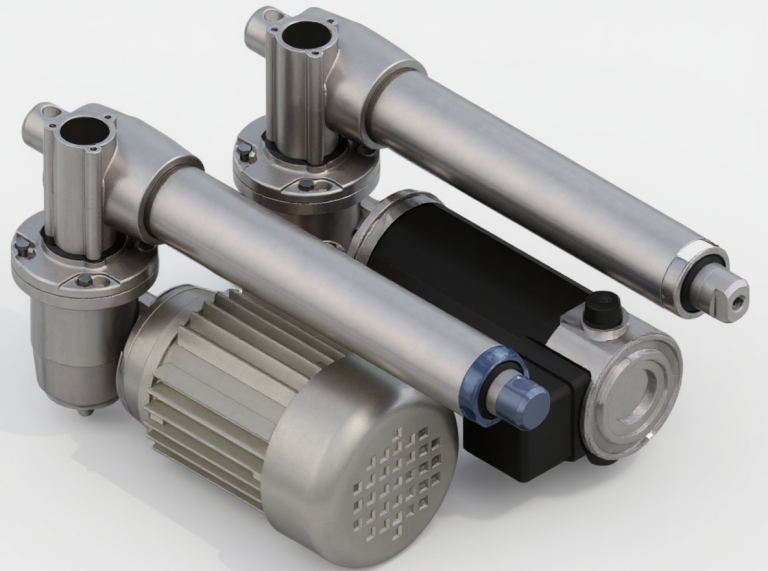

ALI4-P linear actuator

  • AC motor single-phase or three-phase
  • Worm gearbox
  • Acme lead screw or ballscrew
  • Chrome plated steel push rod
  • Permanent grease lubrication
  • IP 65, tested according to rule CEI EN 60529 – NB: only for brake motors standard IP 54, IP 65 on request
  • Working temperature range -10° C +60 °C
  • Intermittent duty S3 30% (5 min) a 30° C
  • Limit switches, potentiometer and encoder on request

Tech values

Max load 15.000 N

Max speed 50 mm/s

Motor 1ph-3ph Vcc-Vca
