Category: HR screw jacks
Screw jacks transform the rotatory movement provided by an electric, hydraulic, pneumatic or manual motor into a linear motion: a vertical lifting, in pull or push, or horizontal positioning.

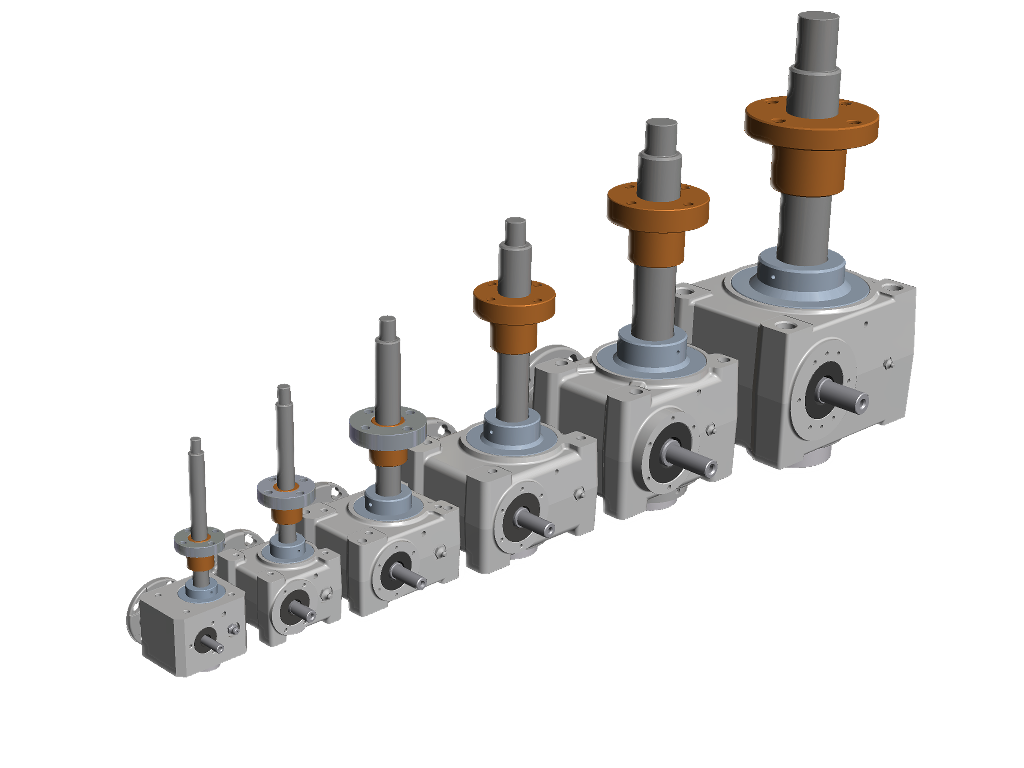

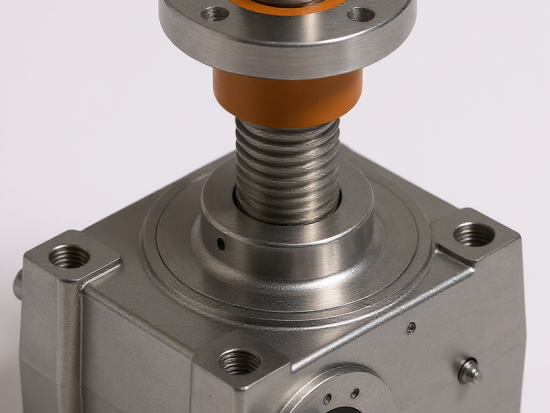

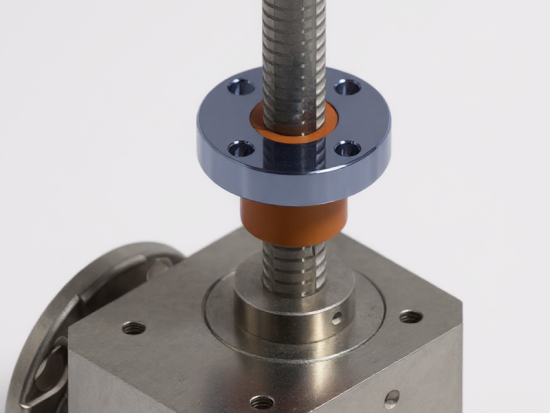

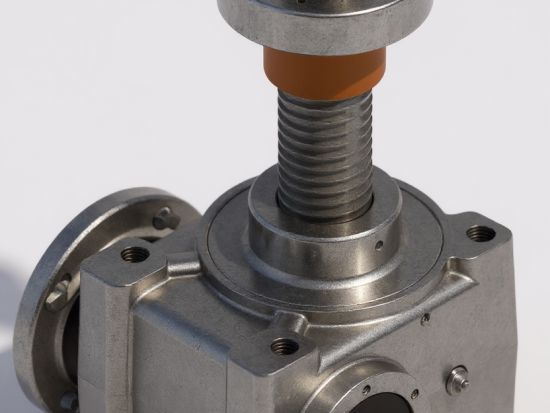

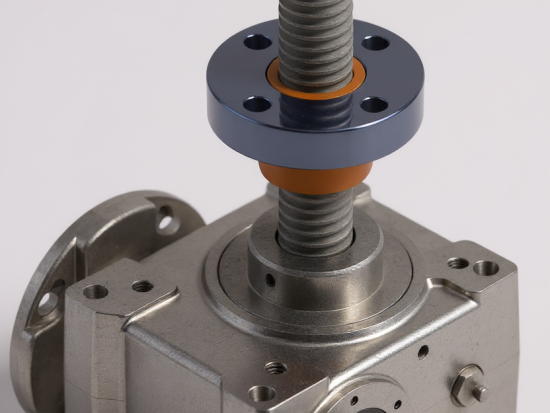

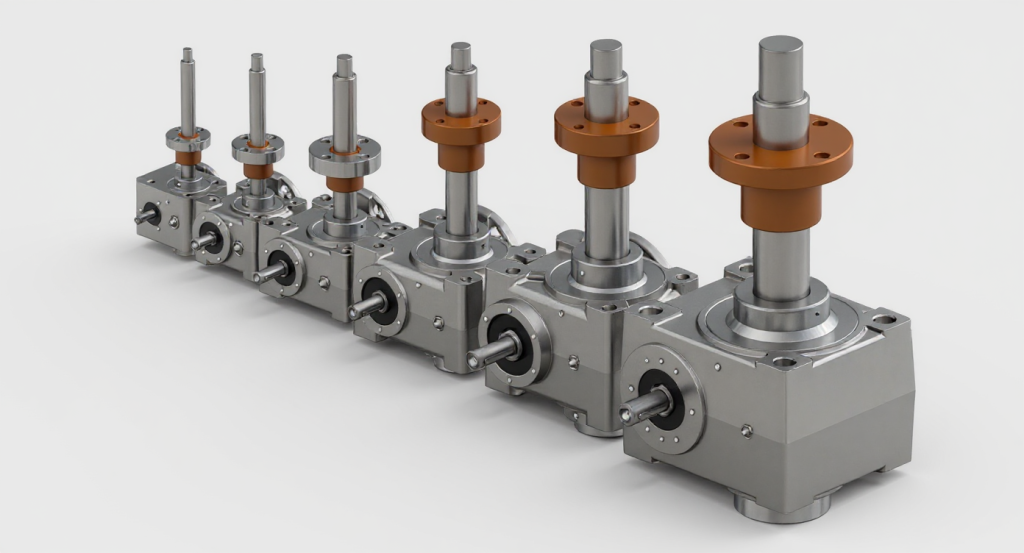

The characteristic of this screw jacks series is to have a rotating plate on the screw of the jack. They can be used individually or in configurations made up of several screw jacks coupled together through couplings, transmission shafts and bevel gearboxes.
Screw jacks allow having perfectly balanced systems even with loads not perfectly distributed on the surface.
Category: HR screw jacks
-

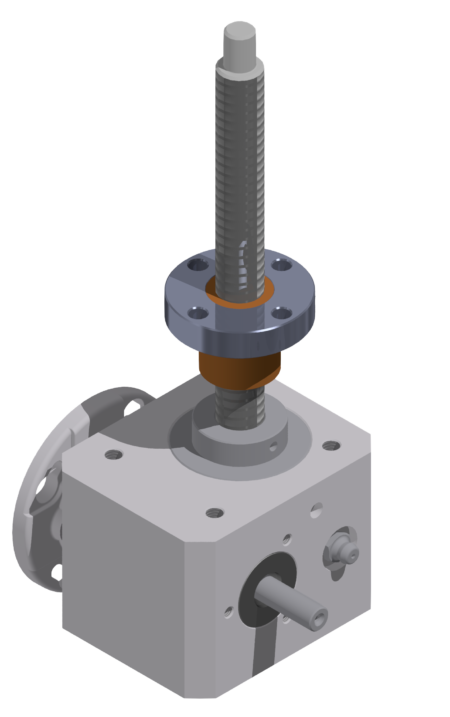

HR 05 Screw Jack
Max. load 5 kN
Gear ratio 1:4 / 1:10 / 1:16 / 1:30
Acme screw 18×4
Accessories limit switches / potentiometer / encoder -

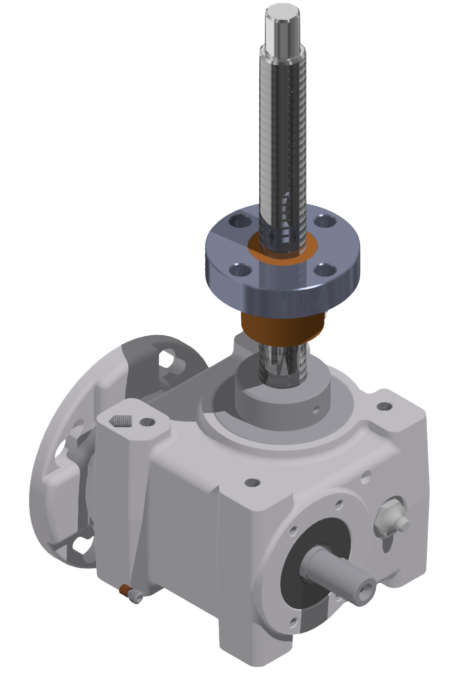

HR 10 Screw Jack
Max. load 10 kN
Gear ratio 1:4 / 1:10 / 1:16 / 1:30
Acme screw 20×4
Accessories limit switches / potentiometer / encoder -

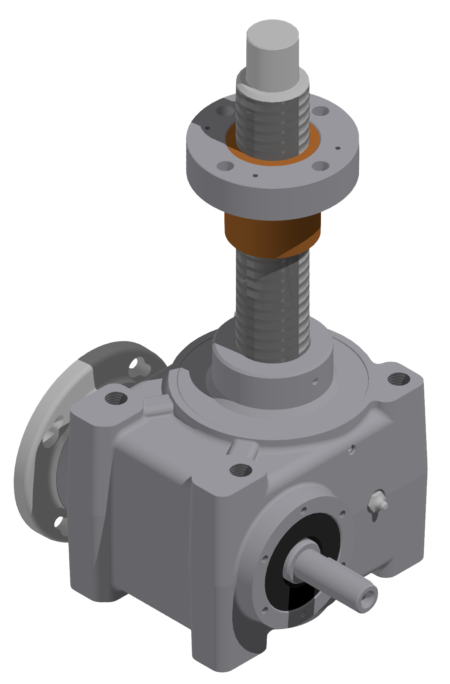

HR 100 Screw Jack
Max. load 100 kN
Gear ratio 1:5 / 1:10 / 1:30
Acme screw 55×9
Accessories limit switches / potentiometer / encoder -

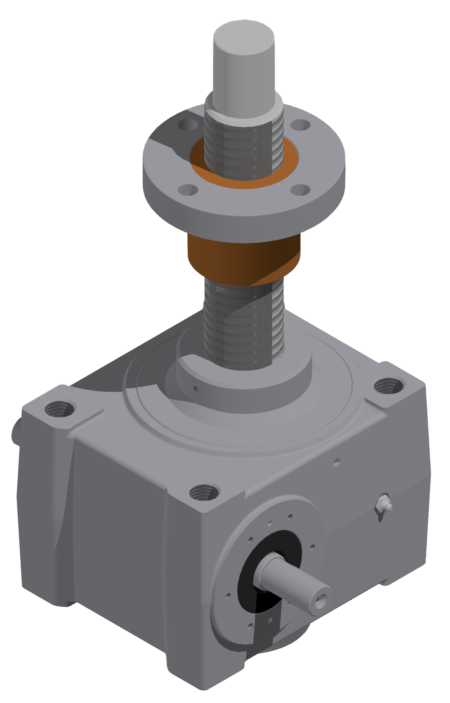

HR 200 Screw Jack
Max. load 200 kN
Gear ratio 1:5 1:10 1:30
Acme screw 70×10
Accessories limit switches / potentiometer / encoder -

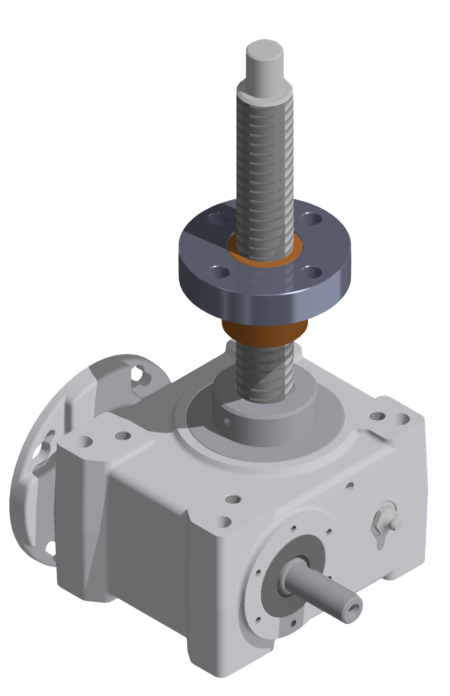

HR 25 Screw Jack
Max. load 25 kN
Gear ratio 1:5 / 1:10 / 1:30
Acme screw 30×6
Accessories limit switches / potentiometer / encoder -

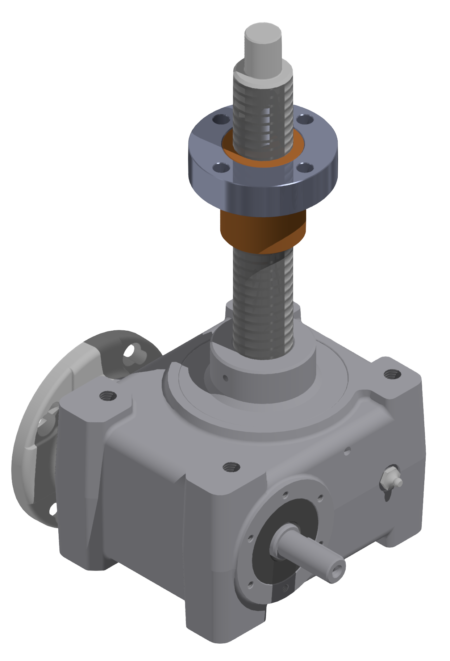

HR 50 Screw Jack
Max. load 50 kN
Gear ratio 1:5 / 1:10 / 1:30
Acme screw 40×7
Accessories limit switches / potentiometer / encoder
Don't forget that
UNI EN ISO 9001:2016 specifies the requirements of the management system and the quality of the company organization. This acquisition demonstrates the ability to regularly supply products that meet customers’ requirements, with the aim to improve their satisfaction through the efficient application of the system, including processes for continuous product innovation and customer compliance assurance according to the laws of the country.
MecVel customization service allows the client to configure the product to its final application. In. this way the technical specification perfectly fits the requirements, and the system will be long-lasting and safe.
Fill in the form to configure your product, and contact our staff.
