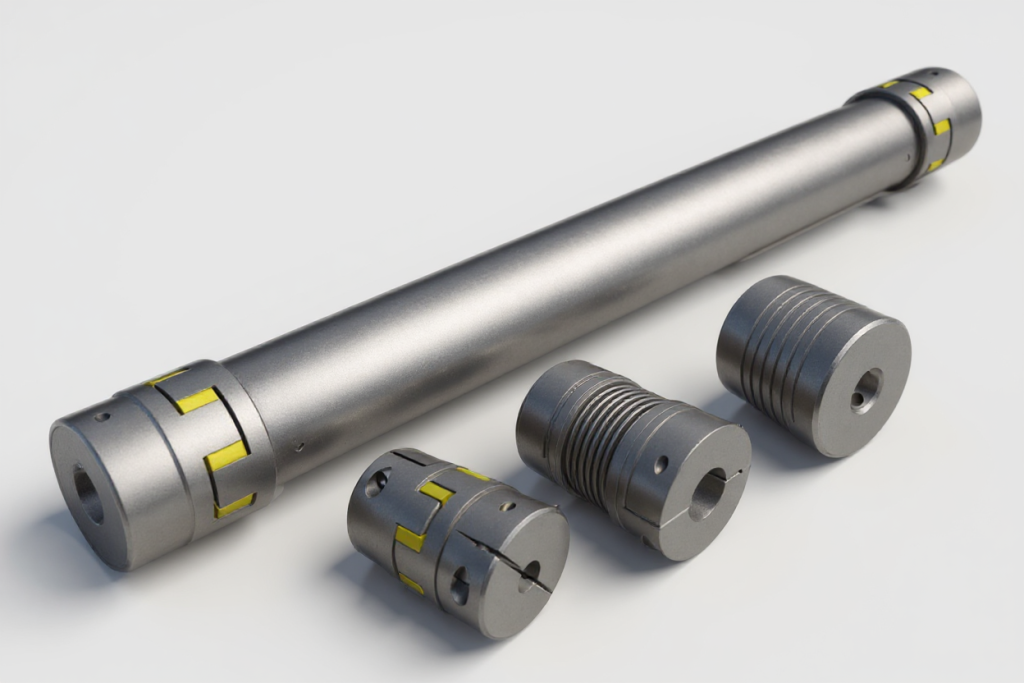

Shafts and Couplings

Shafts and Couplings

Through the use of the appropriate joints, AT and ATM shafts can be mounted even after the application and the fixing of the screw jack: place the transmission shaft on the screw jack shaft, and fix the joint hubs using the screws, to be tightened with a specific torque.

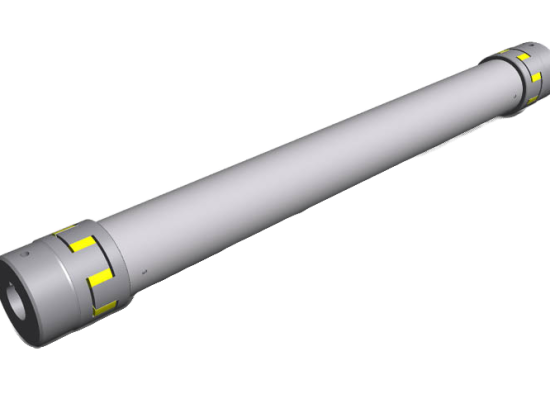

Shafts AT-ATM Series

AT: max 620 Nm
ATM: max 380 Nm

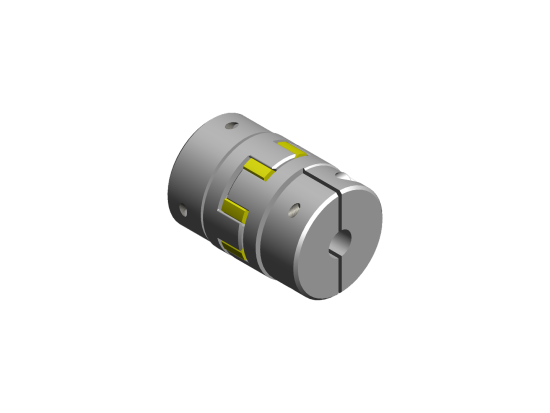

Couplings G-GM Series

G: max 1250 Nm
GM: max 380 Nm
